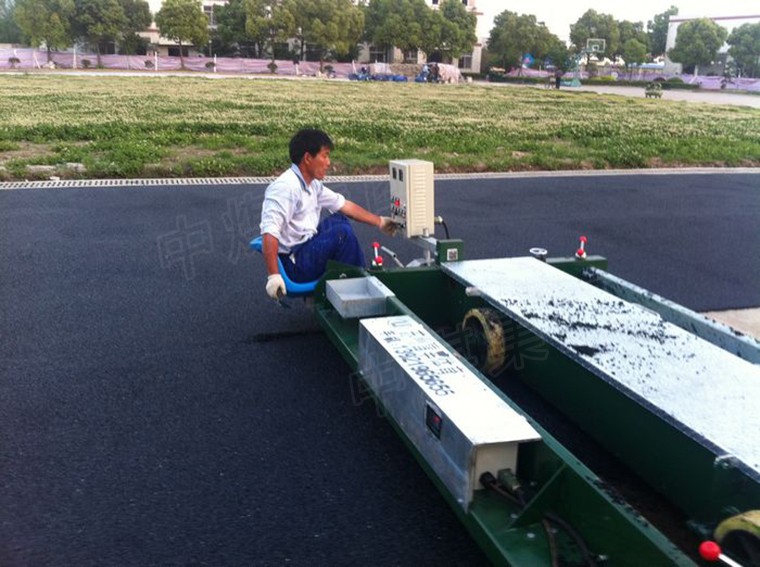

The Five Major Structures Of The Rubber Paving Machine

1.Rubber Paving Machine Rack: I-beam welded structure, solid and stable, paint rust-proof, can withstand the harsh conditions of the construction site.

2.Rubber Paving Machine front scraper: steel welded structure, the height of the ground can be adjusted by manually adjusting the screw, so that the thickness of the ground layer can be adjusted, and the upper limit plate can be adjusted to the width.

3.Rubber Paving Machine drive unit: The main drive adopts motor to drive the track chain drive, adopts stepless speed regulation of the frequency converter, is stable, can advance and retreat, and can make arc motion. Different track surfaces can be used for different bottom foundations.

4Rubber Paving Machine: When the Paver Machine needs to move or transfer in the field, it is implemented with a walking device. Hydraulic cylinders are used to lift the machine for manual movement.

5.Rubber Paving Machine: The screed has four functions, namely adjusting the height, adjusting the angle, and adjusting the temperature and vibration. The plastic flooring is vibrated, compacted and ironed as it passes through the screed.
