Work Flow Of Road Paver Machine Construction Operation

Transport the road paver machine to the construction site, and place the two walking rollers flat on the template (you can also turn on the power first to start the walking motor. Make the rubber paving machine drive along the pre-built slope to the template)

Turn on the power supply, run it for (2-3) min first, and confirm that all parts of the running track paver machine are working properly before proceeding with construction work.

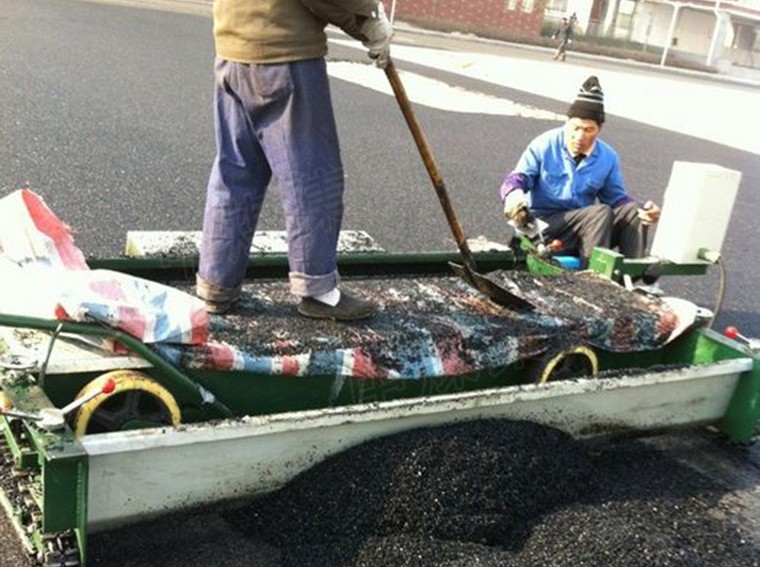

Pave concrete on the pavement to be paved, flatten the concrete roughly, and higher than the template, and then start the road paving machine to walk back and forth, rolling and vibrating until the required flatness is achieved. Start the vibrating roller first, and start the walking roller to make the machine move forward.

If the pile of material in front of the paving roller is too high and the running track paver machine is difficult to travel, you can turn off the walking motor to stop the machine from moving forward, and then continue to move forward after the concrete is spread. After flattening for a period of time, make the rubber paving machine walk back and forth 2-3 times, walking and vibrating, so that the road surface can reach the required flatness and compactness. Then you can proceed to the next section of paving.

Running Track Paver Machine Walking direction control

When rubber paving machine a curve or the machine is on one side of the template, the steering mechanism can be manipulated by the steering wheel to steer and correct the deviation, so that the machine's walking direction is kept parallel to the template.

The specific rubber paving machine operation method is as follows:

(1)The road paver machine moves forward and the paving roller rotates counterclockwise. If the steering wheel is turned clockwise, the machine turns to the left. When paving the concrete in front of the rollers, the steering is obvious.

(2)When the road paver machine is leaning to the side of the template, for example, to the side of the operator, you can first turn the machine to the left (or right), and then move forward or to the right. When the machine moves to the middle of the two templates, the The movement is corrected, and then turn to the right or left, and adjust the machine's walking direction to the right.

(3)It should be noted that when the running track paver machine has a small deviation or the walking direction is not correct, the steering should be used to adjust in time to prevent track loss when the deviation is large.
