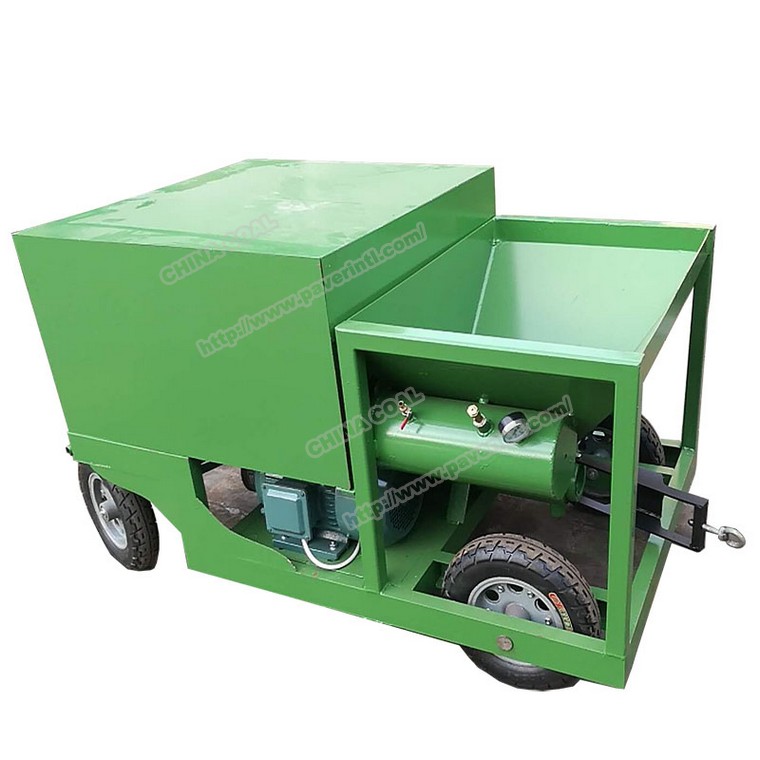

The PTJ-120 sprayer developed by the company has a certain technical content for the on-site plastic spray field on-site spraying equipment. It adopts a more advanced spiral rotor compact layout and gas discharge technology materials and machines to increase its adaptability to its stadium construction. Spraying the site to meet the requirements and meet the quality specifications, collection efficiency, low consumption characteristics, quality and ease of operation and integration, welcomed and recognized by customers at home and abroad.
The main working part of ptj-120 Sprayer Machine is double-acting pneumatic hydraulic booster pump. The reversing mechanism is a special type of pilot-operated full air-controlled gas distribution reversing device. After entering the compressed air, when the piston moves to the upper end or the lower end of the cylinder, the upper pilot valve or the lower pilot valve is actuated, and the control airflow instantaneously pushes the valve reversing device to reverse, so that the piston of the air motor performs stable and continuous reciprocating motion. . Since the ptj-120 Sprayer Machine piston is rigidly connected to the plunger in the paint plunger pump, and the area of the piston is larger than the area of the plunger. The pressurized paint is thus pressurized. The pressurized paint is conveyed to the airless spray gun through a high-pressure hose, and then the hydraulic pressure is released at the airless nozzle, and is instantaneously atomized and sprayed onto the surface of the object to be coated to form a coating layer. After the ptj-120 Sprayer Machine is used, open the paint return valve to stop the paint back to the ink tank. Take out the ink tank and pour the cleaning solvent into the mixing tank and start the oil pump. Open the ptj-120 Sprayer Machine return valve and spray gun. Open to allow the cleaning solvent to circulate in the tubing and clean the gun and oil pump. Pumps and spray guns are extremely precise. Do not disassemble them when cleaning to avoid damage.
Of course ptj-120 Sprayer Machine in practice ptj-120 Sprayer Machine some laymen are also trying their best to ptj-120 Sprayer Machine inadvertently paved the toxic and harmful plastic surface layer ptj-120 Sprayer Machine in addition to its expertise Lack of low technical level The ptj-120 Sprayer Machine also has some profit-driven factors ptj-120 Sprayer Machine and other problems that cannot be seen and predicted, even between layers.
